SCHEDULE 1(Paragraphs 6(3)(a) and (6)(a) and 7(2)(a) and subparagraph 7(2)(b)(i))Identification Numbers and National Safety Mark

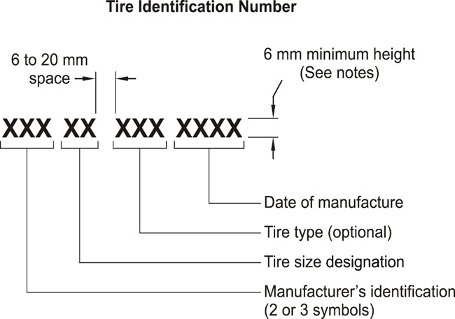

Figure 1 — Tire Identification Number
Notes:
1 For tires less than 155 mm in cross-section or less than 330 mm in bead diameter, the minimum height of the characters in the Tire Identification Number may be 4 mm.
2 The Tire Identification Number must be in Futura Bold, Modified, Condensed characters or in Gothic characters.
3 This drawing is not to scale.

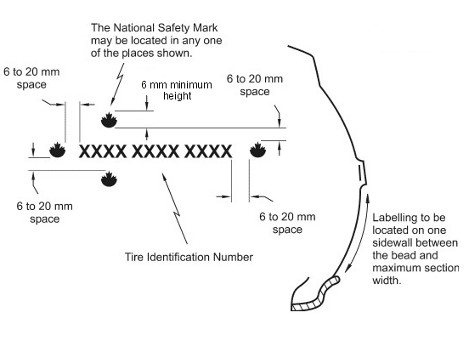

Figure 2 — Location of Tire Identification Number and National Safety Mark
